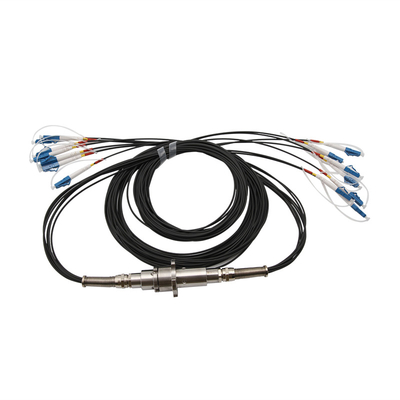

6-channel fiber optic slip ring, 300rpm, rating 65 or 67, power 23dBm from Max Optical IP LPFO-06N-A

Product outline drawing

• No contact and friction, long life, up to 10 million rpm (more than 100 million rpm for signal channel )
• Can combine with multiple signals such as video, series, and Ethernet signal, etc.
• Use optical fiber to transmit information, no leakage, no electromagnetic interference; can transmit tens of
• hundreds of kilometers of networking applications over long distances
• The transmission bandwidth is much larger than the electrical connector, and it can be used to double the
• bandwidth with the wavelength division multiplexer.
• Small in volume and light in weight that is easy to integrate with electric slip ring, and system is easy to
• upgrade and change
• Providing the world's smallest single-channel fiber optic rotary joint, as well as double-channels, four-chan
• nels, ten-channel or even more channel for your option
• Providing photoelectric integrated rotary joint

• Fiber optic transmission type is optional, circuits of current and signal are optional
• Single mode or multi mode, single channel or multiple channel
• Shape can be customized, housing material and driving connector are optional as well

• Robotics
• Material conveying system
• Rotating turret on the vehicle
• Remote control system
• Radar system
• Offshore and marine system
• High speed video, digital, analog signal transmission and control of optic fiber sensor revolving table
• Medical system
• Video surveillance system
• National or international security systems
• Subsea operating systems

Installation Instructions
