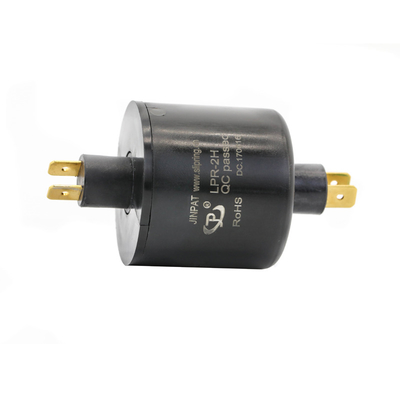

Name: LPR Pin Slip Rings 2 Pin Slip Ring Rounds 25A Loading Capacity Strong Current Long Life
Brand: LPR Pin Slip Rings 2 Pin Slip Ring Rounds 25A Loading Capacity Strong Current Long Life
SKU: LPR-2H
Rating: 4.5 (190 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: LPR-2H

Type: Slip Ring

Circuit Number: 2

Current Rating: 25A

Voltage: 240 VAC

Working Speed: 0~100 Rpm

Working Temperature: -20~+60â„ƒ

Style: Pin Slip Ring

Basic Infomation

Model Number: LPR-2H

Payment & Shipping Terms

Product Description

Bargain Price Only in Alibaba

LPR Pin Slip Ring adopts exquisite and innovative design, and replaces wires with pins. This model complies with

the RoHs standards, and is widely used in wind generators, production line equipment, rotating platform, cable reel

and hot roller.

Features:

Pin contact instead of wire contact
Transmit power and signal
Smooth function
Low contact resistance
Easy to install

Option:

Rotating speed
Number of circuits
Current capacity
Housing material

Application:

Wind generators
Rotating platform
Cable reel and hot roller
Production line equipment

Product Advantages

Strong current carrying capacity
Can transmit 100bit high speed data signals, control signals, etc.
Advanced fiber brush technology to ensure low friction, low contact resistance, no friction debris
Long Lifespan

Specification

LPR Pin Slip Rings
Model	Number of Circuits	Voltage (AC/DC)	Current (A)	OD*Length (mm)	Rotor Outer Diameter(D1)	Pin Base Outer Diameter(D2)	Rotor Pin Length(L1)	Rotor Exposed Length(L2)	Stator Base Length(L3)	Stator Pin Length(L4)
LPR-2H	2	240	2circuits* 25A	φ40*37	φ13	φ13	φ13	8	12	8
LPR-2S	2	240	2circuits*1~5A	φ40*37	φ13	φ13	φ13	8	12	8
LPR-4H(A	4	240	2circuits5A /2circuits15A	φ32.9*28.6	φ32.9*28.6	φ15.5	φ15.5	8	9	8
LPR-4H(B)	4	240	2circuits5A /2circuits15A	φ32.9*28.6	φ32.9*28.6	φ15.5	φ15.5	8	9	8
LPR-4S	4	240	2circuits5A /4circuits2A	φ32.9*28.6	φ32.9*28.6	φ15.5	φ15.5	8	9	8
LPR-6H	6	240	2circuits5A /6circuits15A	φ33*36.5	φ33*36.5	φ22.1	φ22.1	8	5.1	8
LPR-8H	8	240	2circuits5A /6circuits20A	φ45*52	φ45*52	φ28.5	φ28.5	8	10	8

Outline Drawing

Industrial slip ring Product Display

Company Introduction

JINPAT Electronics, founded since 1996, is a leading manufacturer of slip rings, who has been committed to developing and manufacturing a large variety of industrial slip rings applied to many fields. Typical products like Capsule Slip Ring, Through-bore Slip Ring, Large-current Slip Ring, Coax Rotary Joint, Fiber Optic Slip Ring, Separate Slip Ring, Pin Slip Ring are off-the-shelf units. Besides of these, customization is supported to cater to different application in that electrical rotary joints can be designed exclusively for Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, RS422 and so forth. All the products have been secured by our quality management system, certificated by the IS09001:2008/ ISO14001:2015.
