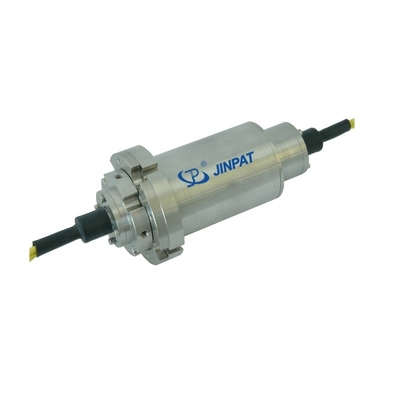

2 Channels Long Distance Fiber Transmission Rotary Joint, Environmental, Slip Ring Interface, For Vehicle Turret

JINPAT fiber optic rotary joint is suitable for application which needs transmitting large datas or signals from static device to rotary position when continuous or intermittent rotating. It uses fiber for the data transmitting of rotary connections systems.

Product parameter table

Product outline drawing

Features

• Suitable for harsh environment

• No contact, no friction, long life time.

• No leaks, no electromagnetic interference.

• Long distance transmission

• Combined with liquid rotation to rotate interface transmission

• liquid and gas

• Small size, light weight

Specification

• Performance Index:Circuits 2 Circuits Fiber

• Working Speed 100rpm:Working life 100 million

• Working Temperature -20~+65

• Optical performance

• Fiber Types MM

• Wavelength Range 850-1550nm

• Insertion Loss <4/6dB

• Insertion loss value change <1 dB

• Return loss >45 dB

• Crosstalk >50 dB

• Connector Types ST/FC/SC/LC

• Optical power 23 dBm

• Mechanical performance

• Tensile force 10N

• Housing Materials Aluminum Alloy

• Encapsulation type Both ends of the tail fiber

• Size Reference drawing

• IP IP65/IP68

• If there are any special requirements please contact us, We can customized for you .

Remarks:

• LPFO-02B-MM is Multi-mode;
• LPFO-02B-XM is Integrated product with Single mode / Multi-mode
• Same size for above two types.
