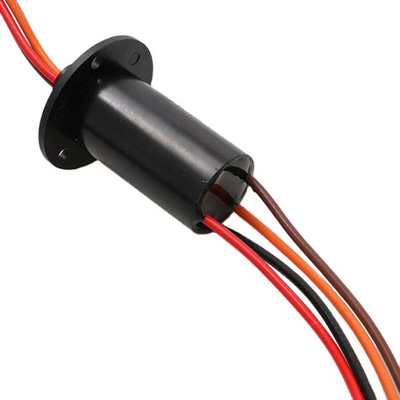

Name: 30mm Capsule Slip Ring 4/5/6 Circuits 10A High Current Electrical Slip Ring For Wind Turbine CSR030-6-10A
Brand: 30mm Capsule Slip Ring 4/5/6 Circuits 10A High Current Electrical Slip Ring For Wind Turbine CSR030-6-10A
SKU: CSR030-6-10A, CSR030-4-10A
Rating: 4.6 (176 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: CSR030-6-10A, CSR030-4-10A

Type: Capsule Slip Ring

Product Name: Slip Ring

Rating: 0~10A/0-240VAC/VDC

Max Curent: 10A

Max Voltage: 240V

Circuits: 4/5/6 CH

Outer Diameter: 30mm

Working Speed: 0~250 Rpm

Operating Temperature: -20â„ƒ~80â„ƒ

Working Life: â‰¥5 Million Rpm

Basic Infomation

Model Number: CSR030-6-10A, CSR030-4-10A

Payment & Shipping Terms

Product Description

Specification

Place of Origin	China
Brand Name	GERUI
Product name	Capsule Slip Ring
Outer diameter	30mm
Circuits	4/5/6 circuits
Current	10A
Rated voltage	0-240VAC/VDC
Rated speed	250rpm
Contact material	precious metal
Operating temperature	-20℃~80℃
Contact material	Gold/Gold
Shell material	Engineering plastics
Working life	≥5 million rpm

GERAY CSR series slip ring is specially designed for data and video signals transmission of small and medium-sized equipment, like speed dome camera, children intelligent toys, stage lights and drones, CCTV systems ,medical equipment ,robotics ,laboratory equipment ,mechanical arm,…,etc.

•Speed dome camera •Children intelligent toys •Robotics •Stage lights

•Drones •CCTV systems •Medical equipment •Mechanical arm

•Electrical test equipment •Medical equipment •Rotary table/turntable •Exhibition/display equipment
