Totally Enclosed YRKS high voltage slip ring HV Motor 6000V 10000V 560KW 710kw 2240kw 1480RPM electric Ac motor with factory price

1.0 piece
MOQ
Totally Enclosed YRKS high voltage slip ring HV Motor 6000V 10000V 560KW 710kw 2240kw 1480RPM electric Ac motor with factory price
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: Other
Model Number: YRKS
Type: Asynchronous Motor
Frequency: 50/60HZ
Phase: Three-phase
Protect Feature: Totally Enclosed
AC Voltage: 10000v
Efficiency: Ie 3
Motor Center Height: H355-1120(mm)
Protection Degree: IP23/IP44/IP54/IP55
Cooling Method: IC01/IC81W/IC611/IC616
Insulation Class: F Class
Duty: S1 (continuous)
Speed: 500/600/750/1000/1500/3000rpm
Mounting Type: IMB3
Function: Windlass, Press Machines, Drawing Machines
Basic Infomation
Model Number: YRKS
Payment & Shipping Terms
Packaging Details: Export wooden package in individual plywood box, customized as your request.
Supply Ability: 600 Set/Sets per Month
Product Description

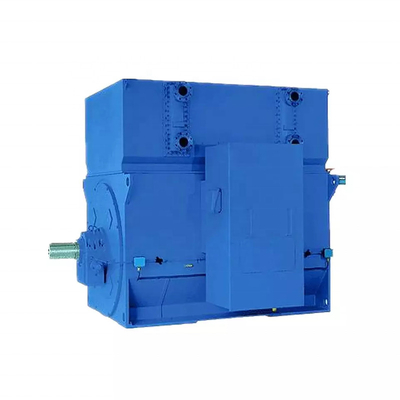

YRKS Series Three Phase Asynchronous Motor

Product Description

YRKS series motors center height H355-H630
Output 185KW-2500KW
pole 2, 4, 6
degree of protection IP44/54
cooling method ICW81A


Discription:

YRKS-series (3kv, 6kv, 10kV) motor, is of wound rotor three phase asynchronous motor. Which complies with JB/T7594-1994 and JB/T10314.1-2002. The protection degree of the motor is of IP23 and the cooling method is of ICW81A.

The motor has such advantage as high efficiency, energy-saving low noise, low vibration, light weight and reliable performance. They are easy for installation and maintenance.

This motor can generate larger starting torque at the state of relatively lower starting current. It used where the capacity of the feeder line is insufficient to start a squirrel cage motor or where the longer starting time and frequent starting are needed or where adjustment of speed is needed within a limited range such as windlass, press machines, drawing machines.

Type of meaning

Order Notice

1. Pls refer to the catalogue before ordering. If the types rating you need are not covered by our booklet, pls contact us. Should you have any specific needs, pls offer us clear and concrete proposal in advance.

2. Pls write clearly the type, output, voltage, speed, excitation, exciting voltage, duty-cycle, type of construction, Number of shaft-end, location of terminal box, direction of rotation, as well as the name and quantity of necessary accessories and spare parts, etc.

3. If the humid-tropical type required, pls mark TH behind the original type number.
