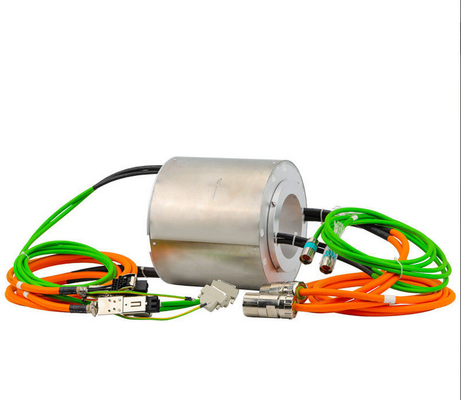

Slip ring for cable reel 8 channel 30A 16 channel signal IP65 slip ring 380v LPT130-0830-16S

1 Piece
MOQ
Slip ring for cable reel 8 channel 30A 16 channel signal IP65 slip ring 380v LPT130-0830-16S
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: LPT130-0830-16S
Type: Electronic Accessories
Circuits: 27 Circuits
Operating Speed: 0-100rpm
Working Temperature: 60%RH
Voltage Rating: 380VAC/240VDC
Current Rating: 8 Circuit*30A 16 Circuit*signal
Basic Infomation
Model Number: LPT130-0830-16S
Payment & Shipping Terms
Product Description
Product Description

Bargain Price Only in Alibaba

LPT series are through-bore slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can
also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). The use of advanced fiber
brush ensures reliable contact under extremely low friction. The center hole is available from 0 to 1000mm. The current
is from mA to 5000 amps. The voltage can be up to 10000 volts, which can fully meet different needs of transmission.
Features:
  • Transmit analog and digital signal
  • The power and signal are mixed transmitted, and the signal categories are as follows:
  • Ethernet: Rate (10Mbps/100Mbps/1000Mbps)
  • Industrial Ethernet: EtherNet , EtherCAT ,ProfiNet, Powerlink , SercosIII/IP, etc.
  • HD video: SDI, LVDS, etc.
  • Serial communication: RS232, RS485, RS422, etc.
  • Universal Serial Bus: USB2.0
  • Industrial Fieldbus: CANBus,ProfiBus, InterBus, CC-Link, DeviceNet, etc.
  • Sensor signal: thermal resistance, thermocouple, strain gauge, etc.
  • Long service life, maintenance-free
  • Easy to install
Main Applications:
  • Industrial automation equipment/Medical equipment
  • Wind power equipment
  • Test equipment
  • Exhibition
  • display equipment
  • Robots
  • Turntable equipment
  • Amusement equipment
  • High-speed railway equipment
  • Packaging
  • machinery
  • Ship offshore equipment
  • Construction machinery

Product outline drawing

Specifications
