RF Rotary Slip Ring Description

RF rotary joint is used in devices that rotate continuously, and transmit high frequency and high speed rate signal from stationary part to rotating part. This kind of slip ring is compact in structure and easy to integrate into other devices. It is reliable in performance and excellent in shielded effect.

Meanwhile, RF coaxial connector also enjoys a good function of processing signal besides the performance that mentioned above. For example, Filtering, phase-modulation, frequency mixing, attenuation, detection and so forth. Furthermore, the low VSWR and wastage could better satisfy the needs of weapon system and precise measurement instrument.

Features

• Excellent in shielded effects and anti-interference capacity
• Integrated unit of high frequency and electric
• Modular design and physical integration make it compact in structure
• Available for separate transmission of single or multi-channel high frequency signals or integrated transmission of electrical signal (200 circuits at most) and high frequency
• Simultaneous transmission of multiple signals or channels (4 at most) is supported
• Ultra-low insertion loss, VSWR and phase-WOW (<1°)
• Optional connector type

RF Rotary Slip Ring Advantages

• Long service life
• Cost-effective
• No maintenance
• Custom solution for hybrid rotary joint

RF Rotary Slip Ring Specification

RF Rotary Slip Ring Main Application

• Satellite ground station
• Air traffic control radar
• Military radar system\
• Video surveillance system
• ECS

  RF Rotary Slip Ring Outline Drawing

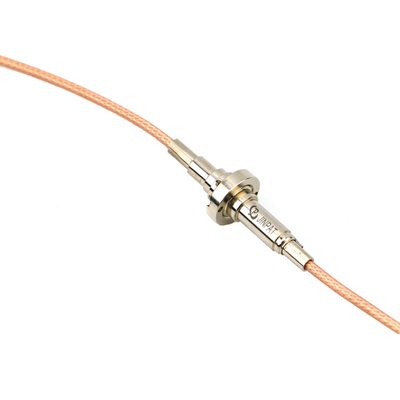

Product Display
